REVERSE ENGINEERING

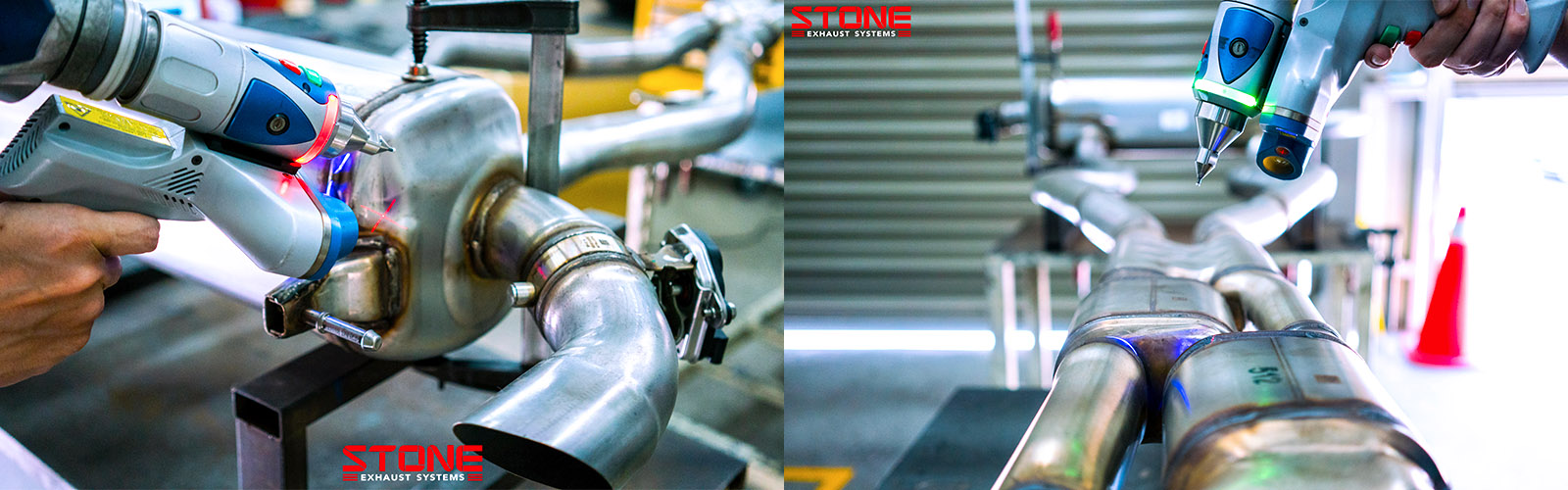

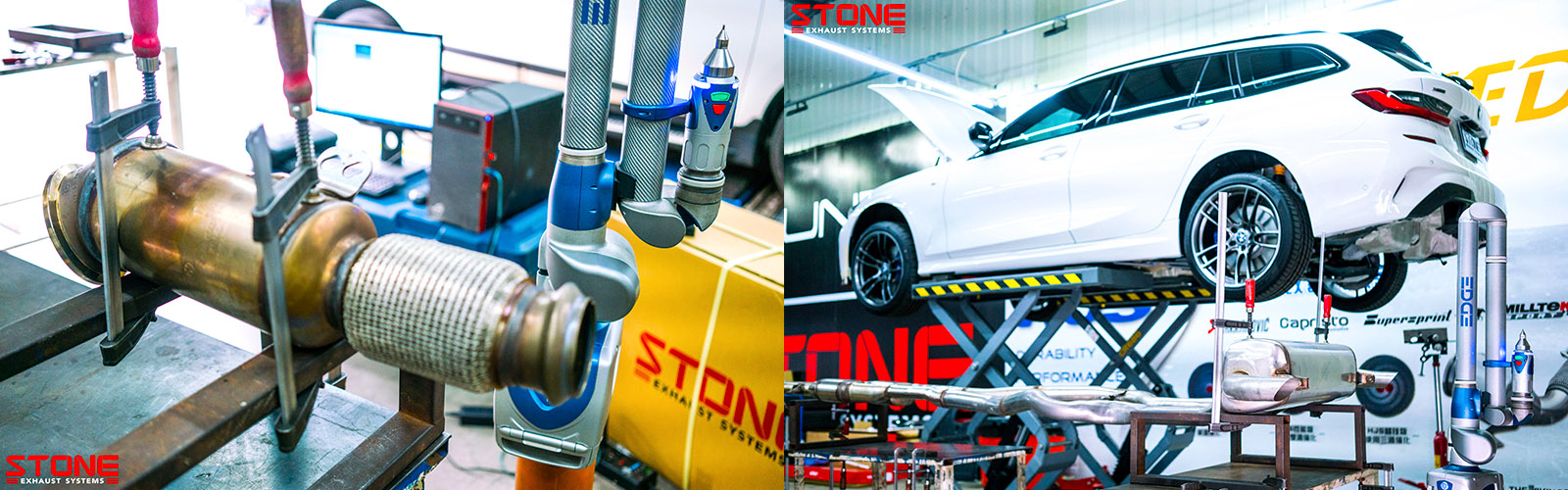

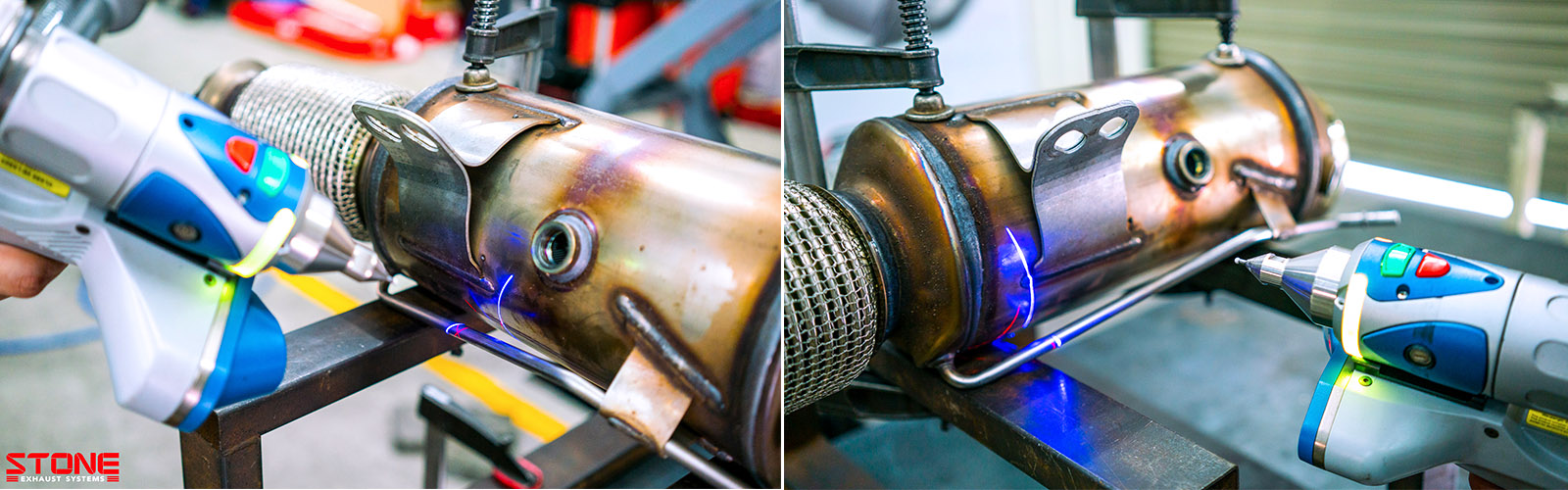

3D scanning and contact measurement.
Collecting data of the stock parts. non-contact
Precision 0.029mm. Providing the R&D department with the exact data.

The R&D department follows the data from reverse engineering, using 3D graphics software to design the pipe diameter,

route, degrees of the bending angle, and space application of the chassis.

Using simulation software to analyze the exhaust gas flow movement, thermal and pressure zone.

After discussing and correction, forming the perfect production specification.
